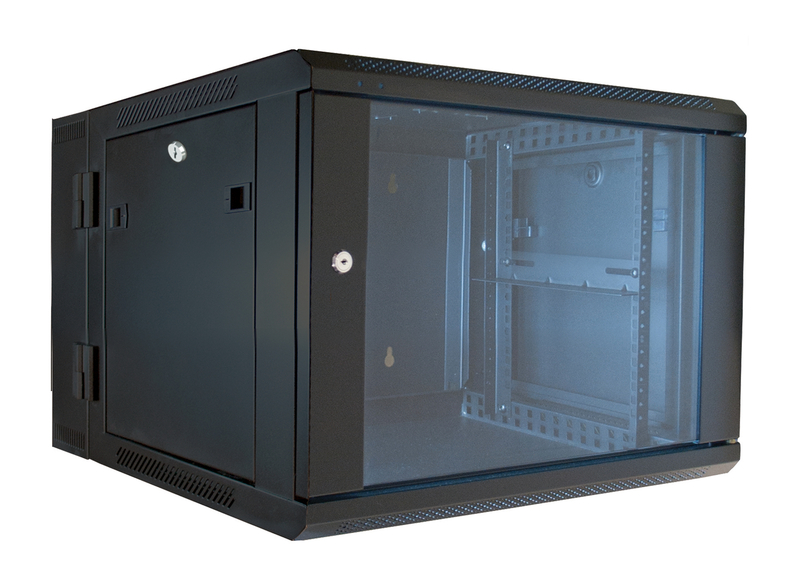

19" Hinged Wall Equipment Rack Enclosure - 6U

ERWEN-6E


Beautiful and strong, the ERWEN-6E is a workhorse of a wall mounted rack enclosure.  With adjustable four post rails, a removable hinged wall plate and a reversible tempered glass front door, the ERWEN-6E has all the features installers are looking for.


Click to View Larger Image

Features

  • Welded steel construction
  • Ships fully assembled
  • Works with all standard 19" rack equipment and accessories
  • Overall Dimensions - 14.5"H x 24.3"W x 21.9"D
  • Usable Depth - 16"
  • Rails have numbered spaces with standard 10-32 threading
  • Adjustable front and rear rails
  • Vented top and bottom
  • Top and bottom cable routing knockouts
  • Reversible hinged tempered glass front door
  • Removable hinged back panel
  • Removable side panels (with optional locks)
  • Load capacity – 120 lbs
  • Black powder coat finish



Specifications

UPC: 6-7385313106-3 (ERWEN-6E)

MSRP: $339

Product Dimensions (WxDxH): 24.3" x 21.9" x 14.5"

Product Weight (lbs): 50 lbs

Shipping Dimensions (WxDxH): 27" x 25" x 18"

Shipping Weight (lbs): 57 lbs
