Multi-Configurable Small Flat Panel Articulating Mount

LCD-1B

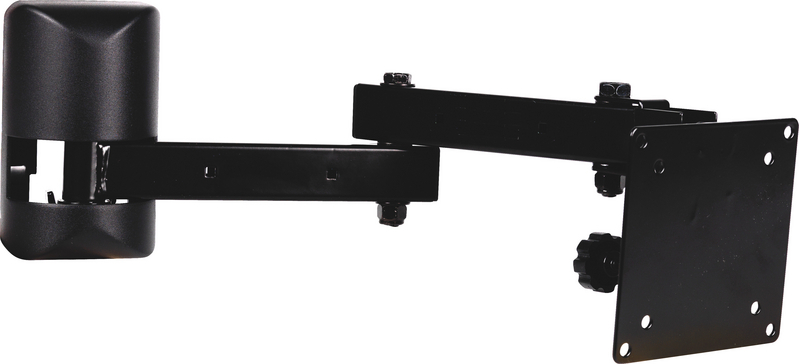

The LCD-1B is a multi-configurable flat panel articulating mount that can handle a wide variety of situations.  The mount can be used as a single arm, double arm or near flush wall mount and holds most 10" to 23" flat panels.


Click to View Larger Image

Features



  • Holds 10” – 23” flat panels

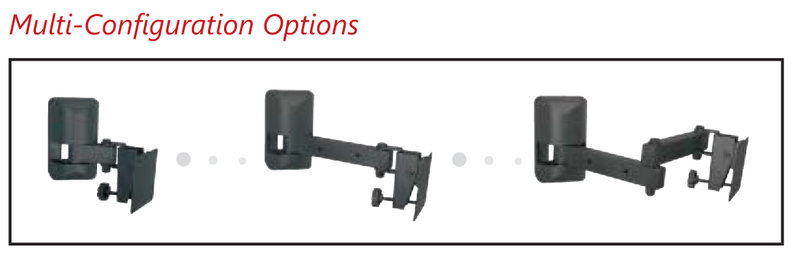

  • Can be configured as a single arm, double arm or near flush mount with parts provided
  • Accommodates flat panels with 75 or 100 mm VESA hole patterns
  • Adjustable -5º to +20º tilt
  • Rotates 240º at the panel
  • Rotates 240º at the elbow joint (Double Arm configuration)
  • Rotates 160º at the wall
  • Feed through wall plate with decorative cover
  • Clip based cable management system
  • Load capacity - 25 lbs
  • Black powder coat finish
  • UL listed

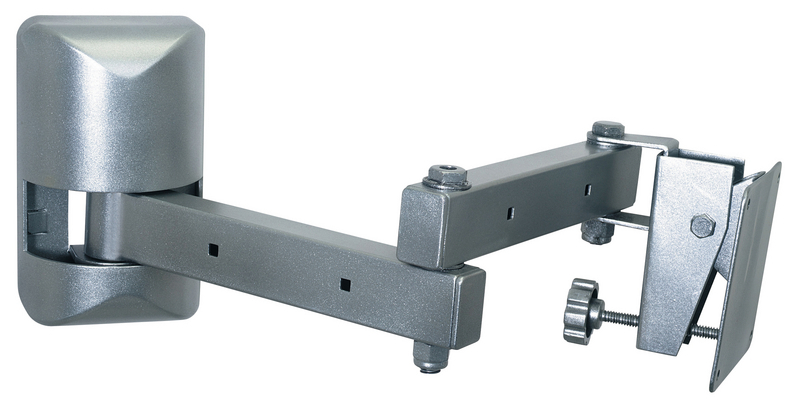

LCD-1 - Same as above except with a silver finish




Specifications

UPC:  6-7385301321-5 (LCD-1)

           6-7385301324-6 (LCD-1B)

MSRP:  $83.95

Product Dimensions (WxHxD): 4.5" x 6" x 15.3" (fully extended)

Product Weight:  2.5 lbs

Shipping Dimensions (WxHxD):  11" x 5.25 x 2.25"

Shipping Weight:  5 lbs




Downloads




Accessories

  • IWB-1B: In-Wall Box Adapter
  • VH-003: Wall Mount Electronic Component Holder
  • LCD-DM2: Dual Small Flat Panel Desk Mount Adaptor
  • LCD-WM2B: Dual Small Flat Panel Wall Mount Adaptor
  • LCD-PA: Pole adaptor
