Multi-Configurable Medium Flat Panel Articulating Mount

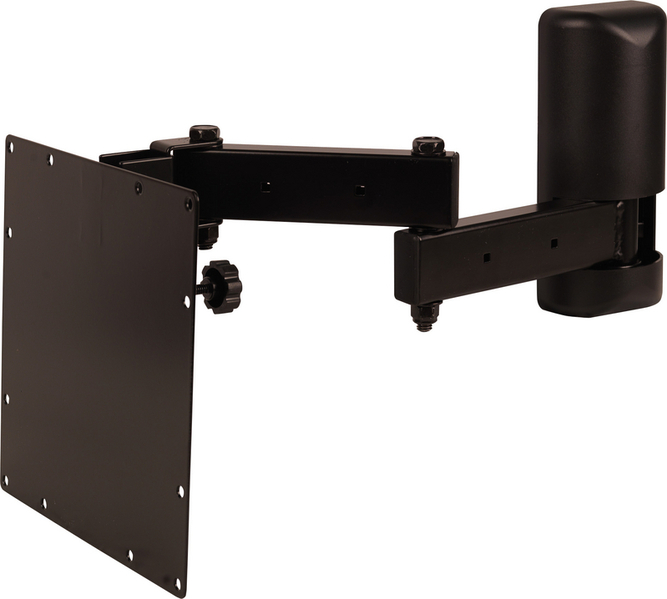

LCD-2537B


The LCD-2537B is a multi-configurable flat panel wall mount that can handle a wide variety of situations.  The mount can be used as a single arm, double arm or near flush wall mount and holds most 25" to 32" flat panels.


Click to View Larger Image

Features



  • Holds 25” – 32” flat panels
  • Can be configured as a single arm, double arm or near flush mount with the parts provided
  • Accommodates flat panels with 75, 100, 200 and 100 x 200 mm VESA hole patterns
  • Adjustable -5º to +20º tilt
  • Rotates 240º at the panel
  • Rotates 240º at the elbow joint (Double Arm configuration)
  • Rotates 160º at the wall
  • Feed through wall plate with decorative cover
  • Clip based cable management system
  • Load capacity - 50 lbs
  • Black powder coat finish





LCD-2537 - Same as above except with a silver finish




Specifications

UPC:  6-7385323570-9 (LCD-2537)

           6-7385323571-6 (LCD-2537B)

MSRP:   $139.95

Product Dimensions (WxHxD):  8.4" x 11.1" x 13.95" (fully extended)

Product Weight:  5.1 lbs

Shipping Dimensions (WxHxD):  9.2" x 8.6" x 2.75"

Shipping Weight:  7 lbs




Downloads




Accessories

  • IWB-1B: In-Wall Box Adaptor
  • VH-003: Wall Mount Electronic Component Holder
  • AP-1B: 400mm x 200mm VESA adaptor plate
  • AP-2B: 300mm x 300mm VESA Adaptor Plate
  • LCD-PA: Pole adaptor
