Medium Flat Panel Ceiling Mount - Head Only

LCD-MID-CHB

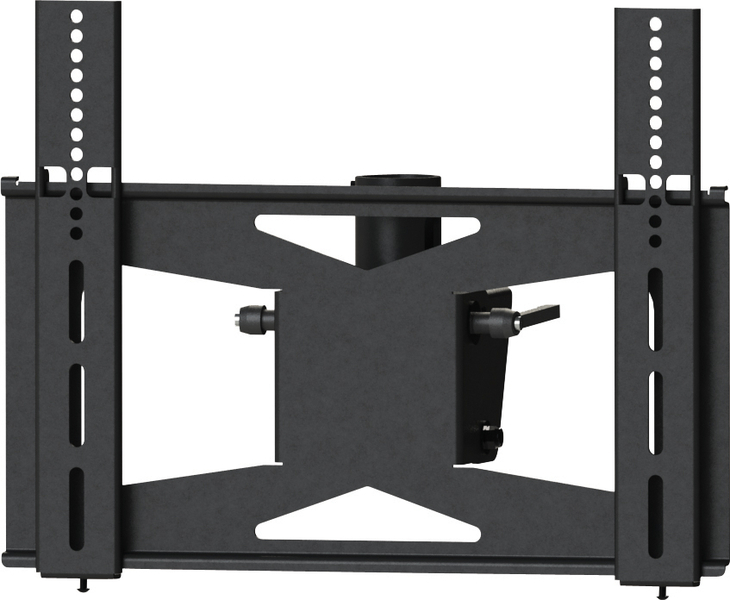

The LCD-MID-CHB is the mounting head of the VMP ceiling mount the LCD-MID-CB.  Used with preexisting 1.5" NPT pipe to mount most 27" to 42" flat panels.  This versatile mount can handle a wide range of ceiling mount applications with its adjustable tilt, extension, rotation and rails to ensure perfect flat panel placement.


Click to View Larger Image

Features

  • Holds 27” – 42” flat panels
  • Maximum mounting hole pattern - 410mm x 340mm
  • Rotates 360° / Adjustable -5° to +20° tilt
  • Uses standard 1.5” NPT masting
  • Load capacity – 100 lbs
  • Black powder coat finish



Specifications

UPC:  6-7385301376-5  (LCD-MID-CHB)

MSRP:  $166.95

Product Dimensions (WxDxH):  19" x 6.25" x 15"

Product Weight:  12 lbs

Shipping Dimensions (WxDxH):  20.1" x 10.5" x 4.6"

Shipping Weight:  14 lbs




Downloads




Accessories

  • EXT-4872: 1.5" NPT Telescoping Extension - 48" to 72"
  • CP-1PT: Ceiling Plate For Standard 1.5" NPT Pipe With Cable Pass-Through
  • VH-005: Pipe/Ceiling Mast Electronic Component Holder
  • CP-1/CP-2: Ceiling Plate For Standard 1.5" NPT Pipe
  • EXT-1830: 1.5" NPT Telescoping Extension - 18" to 30"
  • EXT-0609: 1.5" NPT Telescoping Extension - 6" to 9"
  • LCD-MID-CM2B: Dual Mid-Size Flat Panel Ceiling Mount Adaptor
