Large Flat Panel Ceiling Mount - Head Only

PDS-LCHB


The PDS-LCHB is the mounting head of the VMP ceiling mount the PDS-LCB.  Used with preexisting 1.5" NPT pipe to mount most 37" to 80" flat panels.  This versatile mount can handle a wide range of ceiling mount applications with its adjustable tilt, extension, rotation and rails to ensure perfect flat panel placement.

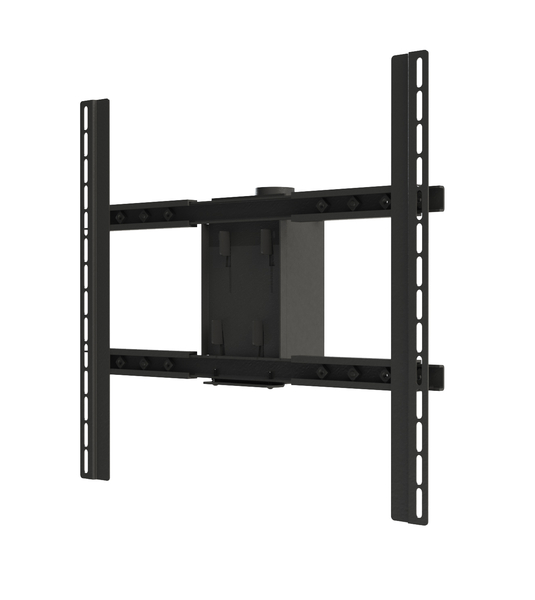

Click to View Larger Image

Features

  • Holds most 37” - 80” flat panels
  • Maximum mounting hole pattern - 860mm x 500mm
  • Rotates 360º
  • Adjustable 0º – 15º tilt
  • Uses standard 1.5” NPT masting
  • Load capacity - 180 lbs
  • Black powder coat finish



Specifications

UPC:  6-7385301425-0  (PDS-LCHB)

MSRP:  $199.95

Product Dimensions (WxDxH):  33.9" x 5.7" x 21"

Product Weight:  22.3 lbs

Shipping Dimensions (WxDxH):  27.25" x 12" x 7"

Shipping Weight:  26 lbs




Downloads




Accessories

  • CP-1PT: Ceiling Plate For Standard 1.5" NPT Pipe With Cable Pass-Through
  • EXT-1830: 1.5" NPT Telescoping Extension - 18" to 30"
  • EXT-4872: 1.5" NPT Telescoping Extension - 48" to 72"
  • VH-005: Pipe/Ceiling Mast Electronic Component Holder
