Medium Flat Panel Tilt Mount

LCD-MID-FTB

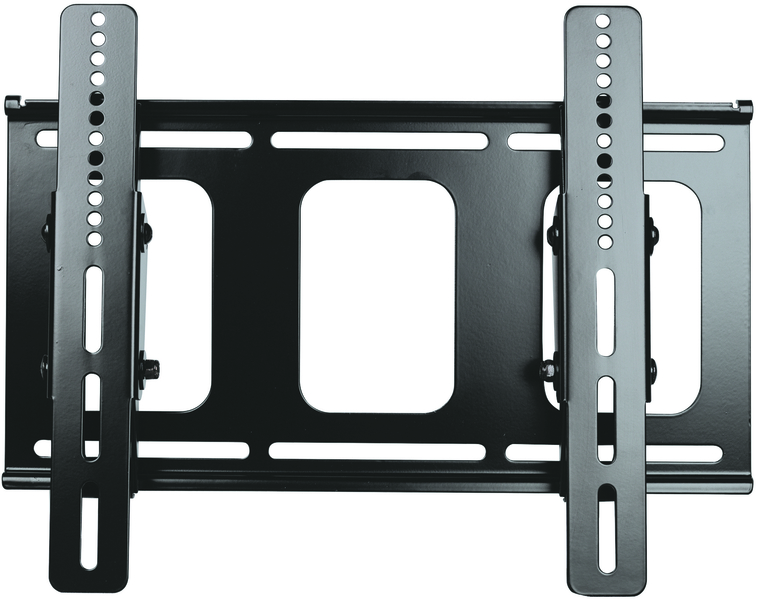

The LCD-MID-FTB is a medium flat panel tilt mount.  It holds most flat panels 27" to 42", has adjustable tilt while keeping it close to the wall.  Rails adjust left to right and lock in place for perfect flat panel placement.


Click to View Larger Image

Features



  • Holds 27” – 42” flat panels
  • Maximum mounting hole pattern – 410mm x 340mm
  • Adjustable -5° to +15° tilt
  • Distance from wall to back of the flat panel – 2.4”
  • Accommodates multiple double gang boxes
  • Load capacity – 100 lbs
  • Black powder coat finish

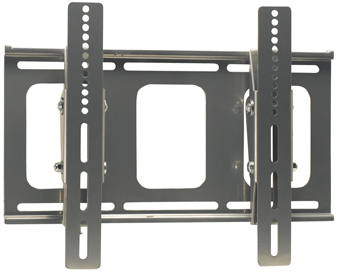

LCD-MID-FT - Same as above except with silver finish




Specifications

UPC:   6-7385301364-2 (LCD-MID-FT)

            6-7385301365-9 (LCD-MID-FTB)

MSRP:   $104.95

Product Dimensions (WxHxD):  19" x 14.5" x 2.4"

Product Weight:  9 lbs

Shipping Dimensions (WxHxD):  19.5" x 10.5" x 2.7"

Shipping Weight:  11 lbs




Downloads




Accessories

  • VH-003: Wall Mount Electronic Component Holder
