Truss Ceiling Adaptor

TCA-1

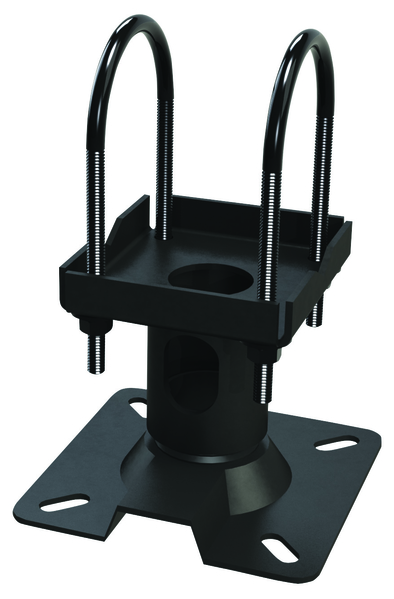

The TCA-1 is a ceiling mount adaptor designed to attach ceiling mounts to a wide variety of trussing or pipe.  Capable of adapting upto a maximum diameter of 3" or maximum cross section dimensions of 3" x 3" the TCA-1 will accomodate most common pipe and trussing cross sections.  Designed to work with VMP's proprietary masts as well as industry standard 1.5" NPT pipe the TCA-1 is the perfect adaptor for your ceiling mount needs.


Click to View Larger Image

Features

  • Works with a wide variety of truss types
  • Maximum circular dimensions – 3” OD
  • Maximum rectangular dimensions – 3” x 3”
  • Works with 1.5” NPT pipe and all VMP ceiling masts
  • Cable pass throughs for cable management
  • Black powder coat finish
  • Load Capacity - 180 lbs.



Specifications

UPC:  6-7385350538-3  (TCA-1)

MSRP:  $58.95

Product Dimensions (WxDxH):  5.5" x 5.5" x 7.6"

Product Weight: 3.25 lbs

Shipping Dimensions (WxDxH):  6" x 6" x 5.75"

Shipping Weight:  4 lbs




Downloads




Accessories

  • PDS-LCB: Large Flat Panel Ceiling Mount
  • PDS-LCHB: Large Flat Panel Ceiling Mount - Head Only
  • LCD-MID-CB: Mid-Size Flat Panel Ceiling Mount
  • LCD-MID-CHB: Mid-Size Flat Panel Ceiling Mount - Head Only
  • LCD-1CB: Small Flat Panel Ceiling Mount
  • LCD-2537CB: Mid-Size Flat Panel Ceiling Mount
