Low Profile Projector Mount

PM-LPMB

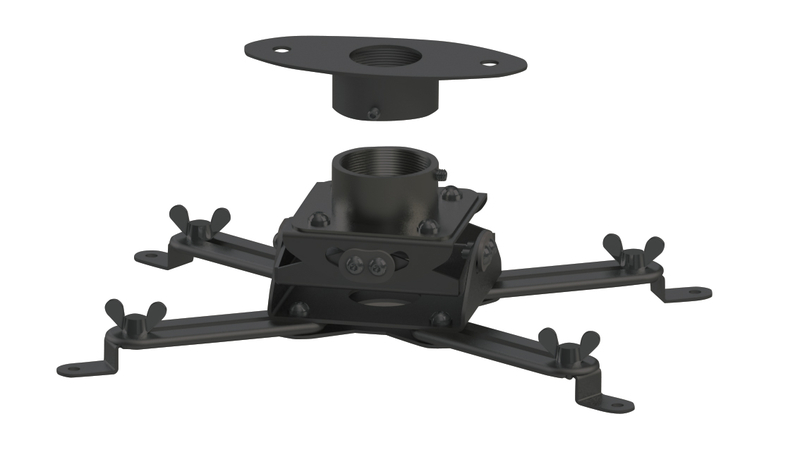

The PM-LPMB is a variation of the PM-LPB projector mount.  The PM-LPMB is a universal, low profile projector mount without the telescoping mast.  It does include a universal ceiling plate that can utilize 1.5" NPT masting.  It is compliant with most of today's leading projectors, and is available in silver and black powder coat finishes.


Click to View Larger Image

Features

  • Fits projectors with mounting holes inside 14.5” diameter
  • Low 2.625” profile (includes the mounting feet)
  • Adjustable tilt - ± 20°
  • Adjustable pitch - ± 15°
  • Adjustable yaw (rotation) - ± 180° (360°)
  • Cable management through the center of the mount
  • Ceiling plate and mounting screws included
  • Uses standard 1.5” NPT masting
  • Black powder coat finish





PM-LPM  -  Same as above except with a silver finish




Specifications

UPC:  6-7385301239-3  (PM-LPM)

         6-7385301240-9  (PM-LPMB)

MSRP:  $139.95

Product Dimensions (WxDxH):  11.6" x 11.6" x 3.8"

Product Weight:  2.7 lbs

Shipping Dimensions (WxDxH):  10.5" x 6" x 3.25"

Shipping Weight:  5 lbs




Downloads




Accessories

  • SCM-1: Suspended Ceiling Mount
  • SCM-2: Suspended Ceiling Replacement Tile
  • EXT-0609: 1.5" NPT Telescoping Extension (6 - 9 inches)
  • EXT-4872: 1.5" NPT Telescoping Extension (48 - 72 inches)
  • EXT-1830: 1.5" NPT Telescoping Extension (18 - 30 inches)
  • : Large Projector Enclosure
  • : Small Projector Enclosure
  • SCFR-1: Suspended Ceiling Finishing Ring Kit
