2U Vertical Equipment Wall Cabinets

ERVWC-2U Series

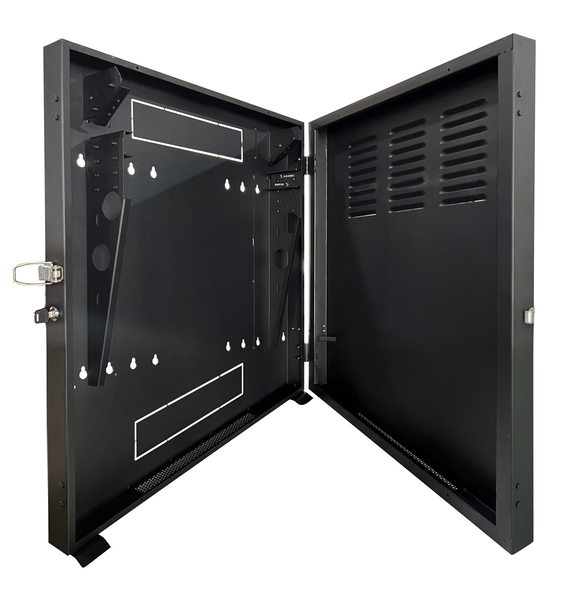

VMP's 2U low profile Vertical Wall Cabinets are designed to securely mount your EIA standard rack equipment in remote locations such as back offices, closets, retail locations or anywhere where there is limited floor space and you need a clean and organized way to secure your equipment in a location that is accessible to many.

These enclosures have an ultra low profile as a result of their vertical mounting configuration.  They feature cable management punch-outs, ventilation and a dedicated location for mounting a patch panel in addition to the available rack units. Mounting rails feature both M6 and 12-24 rail threading options to suit your preference. Units ship completely assembled and ready to mount.
Click to View Larger Image

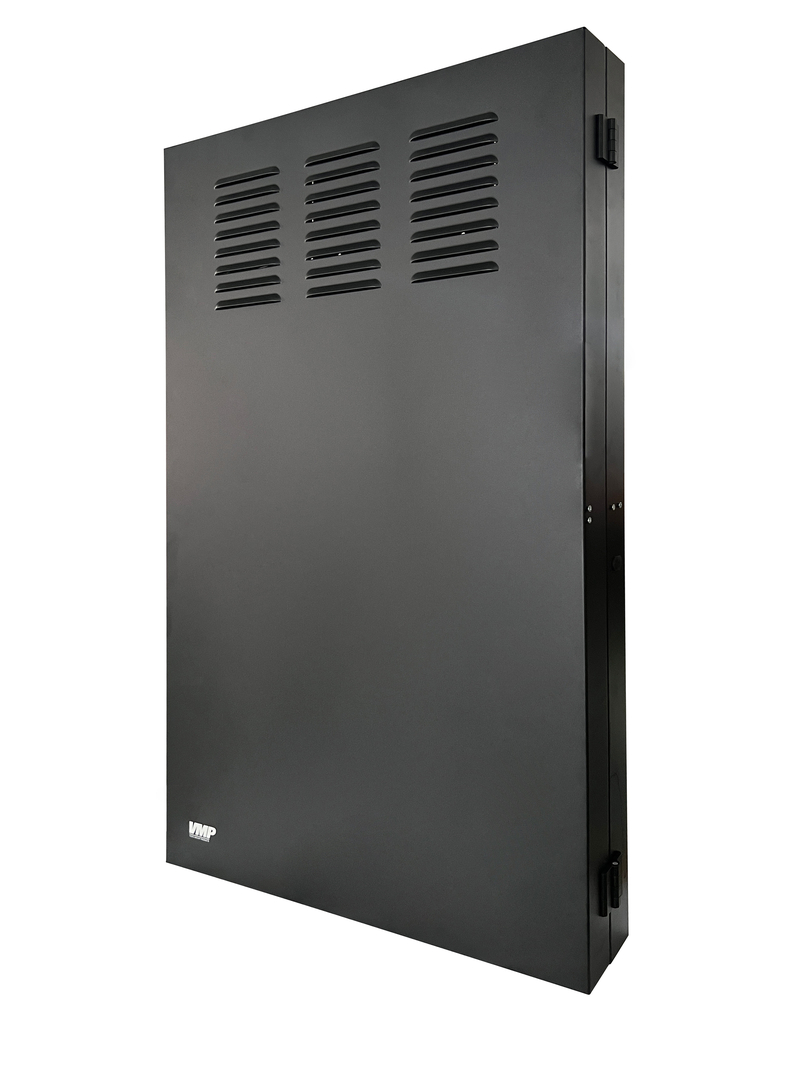

ERVWC-2U20 Closed ERVWC-2U36 Closed

Features

• Ships Fully Assembled
• Two convenient 2U cabinet depths
o 20" Usable Vertical Depth (ERVWC-2U20)
o 36" Usable Vertical Depth (ERVWC-2U36)
• Rails adjust to accommodate mounting depth
• Reversible front door – Vented for cooling
• Locking hinged body
• 1" and 1.6" top and bottom cable ports
• Threaded Mounting holes – M6 or 12-24
• Marked rack spaces
• Slide out 1U bracket for patch panels
• Load Capacity 150 lbs.
• Black Finish

ERVWC-2U36
Overall Dimensions: 42.6"H x 25.3"W x 4.5"D

ERVWC-2U20 (Shown)
Overall Dimensions: 28.7"H x 25.3"W x 4.5"D



See also ERVWC-5U Series

- Same as above except 5U




Specifications

UPC:

67385310134-9 (ERVWC-2U20)

67385310135-6 (ERVWC-2U36)

MSRP:

$529.95 (ERVWC-2U20)

$749.95 (ERVWC-2U36)

Product Dimensions: (H x W x D)

28.7" x 25.3" x 4.5" (ERVWC-2U20)

42.6" x 25.3" x 4.5" (ERVWC-2U36)

Shipping Dimensions: (H x W x D)

31" x 28" x 7" (ERVWC-2U20)

45" x 28" x 8" (ERVWC-2U36)

Product Weight:

ERVWC-2U20 - 38 lbs.

ERVWC-2U36 - 48 lbs.

Shipping Weight:

ERVWC-2U20 - 46 lbs.

ERVWC-2U36 - 56 lbs.
