Low Profile DVR / Storage Lockbox

DVR-LB3

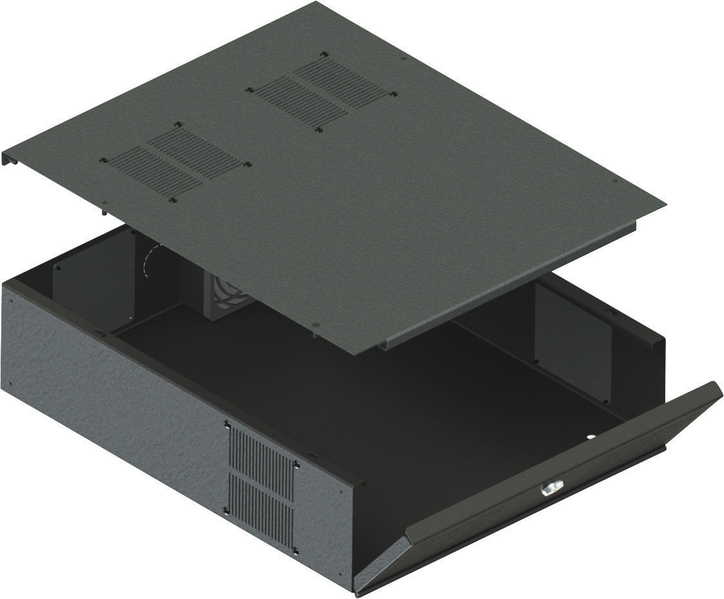

The DVR-LB3 is a low profile DVR lockbox designed for 19" equipment racks or as a stand alone lock box.  It is 2 post or 4 post mountable with adjusting rear flanges to accommodate a variety of rack depths.  The DVR-LB3 is designed for both active or passive thermal management to accommodate whatever your application may be.


Click to View Larger Image

Features

  • Interior dimensions 17.2” W x 21” D x 5” H
  • Stand alone or rack mountable on 2 or 4 posts with a 3 RU overall height (5.25”)
  • Interlocking lift off lid
  • Multiple vents with removable vent blockers for active or passive thermal management
  • Single fan included with mounting location for second fan
  • Key locked hinged front door
  • Black static resistant powder coat finish



Specifications

UPC:  6-7385350041-8 (DVR-LB3)

MSRP:  $236.95

Product Dimensions (WxDxH):  19" x 21.2" x 5.3"

Product Weight:  24 lbs

Shipping Dimenisons (WxDxH):  22.1" x 17.6" x 5.75"

Shipping Weight:  25 lbs




Downloads




Accessories

  • DVR-WA: DVR Lockbox Wall Mounting Arms
  • ER-1: 19" Headend Equipment Rack - 71" Height
  • ER-148: 19" Headend Equipment Rack - 48" Height
  • ER-184: 19" Headend Equipment Rack - 84" Height
  • EREN-18: 19" Equipment Rack Enclosure - 18U - Preloaded w/Shelves and Blanks
  • EREN-18E: 19" Equipment Rack Enclosure - 18U
  • EREN-27: 19" Equipment Rack Enclosure - 27U - Preloaded w/Shelves and Blanks
  • EREN-27E: 19" Equipment Rack Enclosure - 27U
  • EREN-27E1K: 19" Equipment Rack Enclosure - 27U - 1000mm Deep
  • EREN-42E: 19" Equipment Rack Enclosure - 42U
  • EREN-42E1K: 19" Equipment Rack Enclosure - 42U - 1000mm Deep
  • ERWEN-6E: 19" Hinged Wall Equipment Rack Enclosure - 6U
  • ERWEN-9E: 19" Hinged Wall Equipment Rack Enclosure - 9U
  • ERWEN-12E: 19" Hinged Wall Equipment Rack Enclosure - 12U
  • ERWEN-12E750: 19" Hinged Wall Equipment Rack Enclosure - 12U - 24" Usable Depth
  • ERWEN-15E: 19" Hinged Wall Equipment Rack Enclosure - 15U
