In-Wall Box

IWB-1B

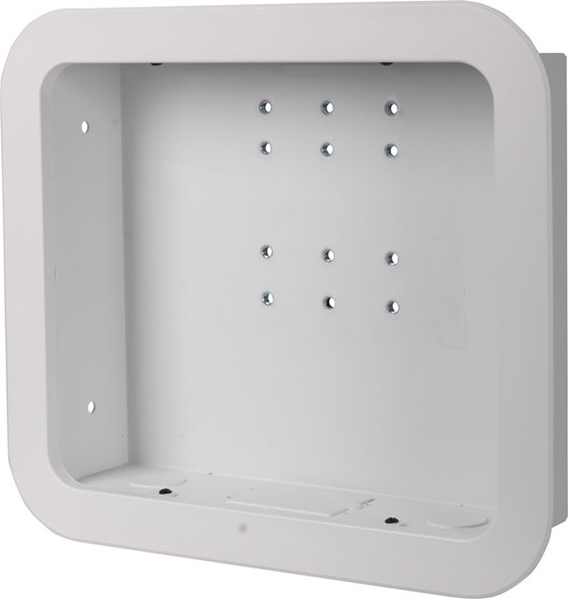

The IWB-1B is an in wall box that allows up to a 32" flat panel to fully collapse into a wall.  It installs easily between two 16" on center wooden studs, has integrated cable and electrical knockouts and a high load capacity.  The IWB-1B works with the LCD-1B and LCD-2537B mounts.


Click to View Larger Image

Features

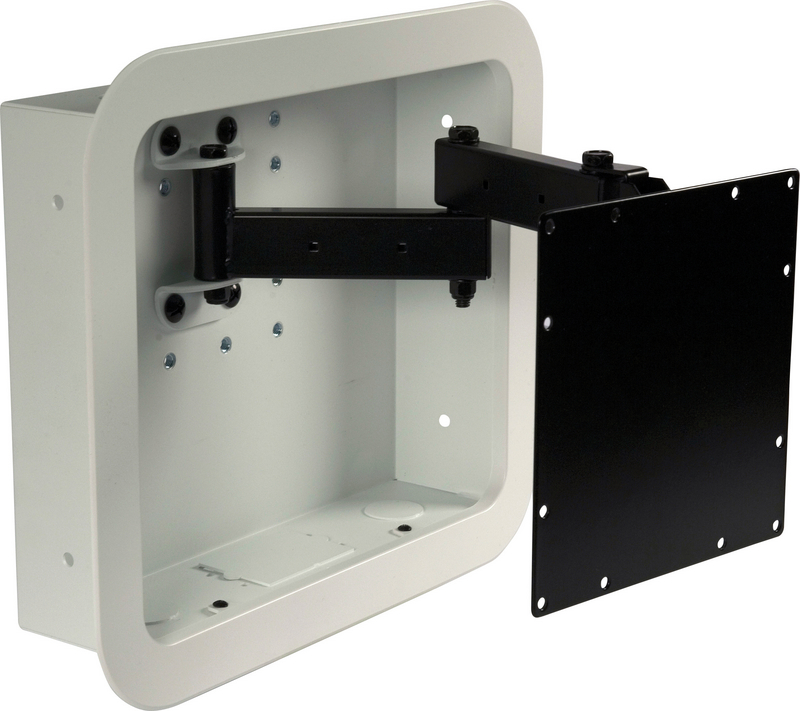

  • Can be used as a pre-construction or retro-fit in wall box or in conjunction with the LCD-1B or the LCD-2537B for a “No Profile” flat panel installation
  • Holds 15” – 32” flat panels
  • Installs between 16” stud centers
  • Integrated cable (4) and electrical (2) knockouts
  • Load capacity – 50 lbs





IWB-1 - Same as above except for use with LCD-1 and LCD-2537




Specifications

UPC:  6-7385350528-4 (IWB-1)

           6-7385350529-1 (IWB-1B)

MSRP:  $134.95

Product Dimensions (WxHxD): 14.2" x 12" x 3.92"

Product Weight:  8.7 lbs

Shipping Dimensions (WxHxD):  18" x 16.25" x 4.75"

Shipping Weight:  15 lbs




Downloads




Accessories

  • LCD-1B: Multi-Configurable Small Flat Panel Articulating Wall Mount
  • LCD-2537B: Multi-Configurable Mid-Size Flat Panel Articulating Wall Mount
