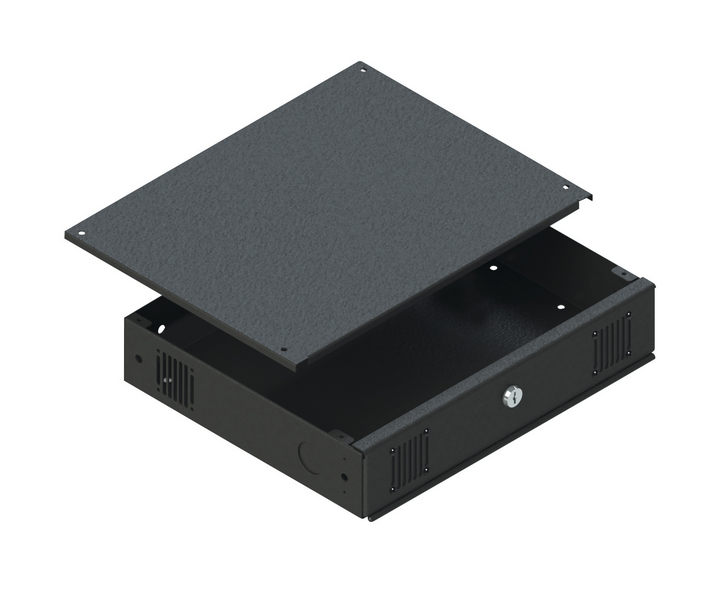

Mobile/Rackmount DVR Lockbox

DVR-MB1


The DVR-MB1 is a small lockbox for mobile or rackmount applications.  The DVR-MB1 can be mounted on four out of six surfaces allowing it to work in any location.  The DVR-MB1 comes with one fan and has the option of mounting three additional fans for better themeral control.  The DVR-MB1 is also rackmountable, with a 2U racking height, making it good for small storage applications.


Click to View Larger Image

Features

  • Interior dimensions 17” W x 13.8” D x 3” H
  • Lockbox is mountable on 4 sides for mobile applications
  • Rack mountable with a 2 RU overall height (3.5”)
  • Mounting strips included for DVR in mobile applications
  • Removable lid secured with tamper proof hardware
  • Single fan included and mounting locations for up to four fans (DVRMB1FAN)
  • Key locked hinged front door
  • Multiple vents with removable vent blockers for active or passive thermal management
  • Black static resistant powder coat finish



Specifications

UPC:  6-7385350040-1

MSRP:  $236.95

Product Dimensions:  17.36" x 14.4" x 3.5"

Product Weight:  14 lbs

Shipping Dimensions:  18.75" x 14.6" x 4"

Shipping Weight:  15 lbs
